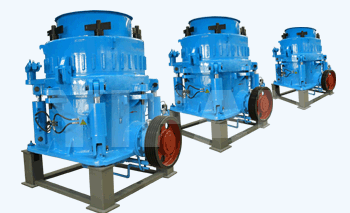

SMH Series Hydraulic Cone Crusher SMH series hydraulic cone crusher Hydraulic Cone Crusher Application:
     SMH series hydraulic cone crusher adopting world advanced technology is designed and made through to be the crusher of world advanced level. it is widely used in metallurgical, architectural, water and electricity, traffic, chemical, architectural material industries. It is suitable for crushing varies of mid hard and above mid hard ores and rocks.
Hydraulic Cone Crusher Feature and Advantage:
(1) Reasonable structure advanced crushing principle and technical specification, reliable work and low cost.
(2) Strong crushing ability; High efficient productivity; High capacity.
(3) Reliable Hydraulic system providing safe and effective overload protection.
(4) Two type of crushing chamber are for wide range of product size requirement.
(5) High automation adopting hydraulic adjustment and hydraulic clean cavity setting.

Model Max Feeding Min Discharge Setting (mm) Motor Power (kw)
Capacity (tons/h) —open circuit, closed discharge (mm)
9 13 16 19 22 26 32 38 51 63
SMH120C 160 22-32 75-90 40-70 60-85 80-100 90-110 100-120 110-130 140-160
SMH120M 130 13-26
SMH120F 50 9-19
SMH180C 180 22-32 132-160 60-90 80~
110 		100~
135 		120~
155 		140~
185 		160~
195 		180~
215
SMH180M 140 13-32
SMH180F 60 9-22
SMH250C 240 26-51 160-220 70~
90 		90~
110 		115~
140 		130~
160 		150~
190 		200~
250 		250~
300 		300~
350 		350~
420
SMH250M 150 16-38
SMH250F 80 9-22
SMH450C 330 32-63 315-375   100~
130 		130~
180 		170~
205 		210~
255 		250~
295 		300~
340 		350~
390 		400~
480 		500~
600
SMH450M 240 22-51
SMH450F 90 13-32
