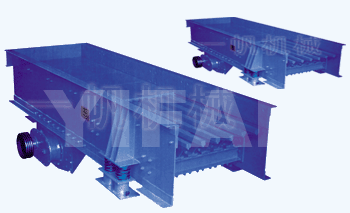

ZSW Series Vibrating Feeder is mainly used to feed material into primary crusher evenly and continuously. Meanwhile, it can screen material and strengthen the capacity of the crusher.Vibrating Feeder Feature and Advantage:
（1）Smooth vibration
（2）Special bar to prevent the block of raw material
（3）The distance between bars is adjustable
（4） Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.
Model |
Max Feed Size (mm) |
Capacity(t/h) |
Motor Power(kw) |
Size of Funnel (mm) |
Weight (kg) |
| ZSW-380×95 | 500 | 96-160 | 11 | 3800×950 | 4082 |
| ZSW-490×95 | 500 | 120-240 | 11 | 4900×950 | 5004 |
| ZSW-490×110 | 580 | 120-280 | 15 | 4900×1100 | 5320 |
| ZSW-590×110 | 600 | 200-350 | 22 | 5900×1100 | 6130 |
| ZSW-600×130 | 750 | 400-560 | 22 | 6000×1300 | 7800 |
