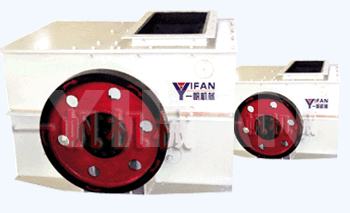

PCH Series Ring Hammer Crusher PCH Series Ring Hammer Crusher      PCH Series Ring Hammer Crusher owns the impact rotor with a special ring hammer. When the material enters into the crusher, it can be crushed by the ring hammer which is revolved by the high-speed motor, at the same time the material obtained the kinetic energy and rushed at the impact plate receiving the second crushing process, then falls on the screen sieve and be cut, extruded, and grinded by the ring hammer. At last the material up to the standard can be discharged by the machine. Uncrushable material enters in to the metal collector and should be eliminated regularly.
      PCH Series Ring Hammer Crusher is used to crush coal, especially brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 15%. It has the following features: energy-saving, fine output size, higher efficiency, and lower noise, less dust pollution and so on.

Model PCH-0402 PCH-0404 PCH-0604 PCH-0606 PCH-0808 PCH-1010 PCH-1016 PCH-1216 PCH-1221
Speed of Rotor(r/min) 960 970 970 980 740 740 740 740 740

Rotor(Diametr× Length) (mm)

400× 200

400× 400

600× 400

600× 600

800× 800

1000× 1000

1000× 1600

1200× 1600

1200× 2100

Max Feed Size(mm)

200

200

200

200

200

300

300

400

400

Discharge Size(mm)

≤30

≤30

≤30

≤30

≤30

≤30

≤30

≤30

≤30

Motor Model Y132M2-6 Y160L-6 Y180L-6 Y225M-6 Y280M-8

Y315M2-8

Y315M3-8

Y312-8

Y400-8

Y400-8

Y450-8

 Y450-8

Motor Power(KW)

5.5

11

15

30

45

90 110

155 220

280 355

450(400)

Moter Voltage 380 380 380 380 380 380

380

6000

 6000 6000
Moter Weight 100 150 170 360 600

1100

1200

1600

3100

3600

4100

 4300

Capacity
(t/h)

8-12

16-25

22-33

30-60

75-105

160-200 200-245

300-350 400-500

500-620 620-800

800-1000
