XL Series Sand Stone Washer
XL Series Sand Stone Washer can wash and separate the soil and sundries in the sand. Its novel structure, adjustable overflow dam baffle and reliable arrangement can ensure the washing result. It is suitable in highway, construction and hydroelectric project.

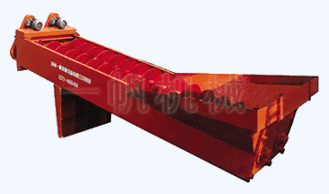

XL Series Sand Washer
Features and Benefits:
(1) High efficiency and reasonable structure;
(2) High capacity and low consumption;

Model XL915 2XL915 XL1115 2XL1115
Screw Diameter(mm) 915 915 1115 1115
Length of Tub (mm) 7585 7585 9782 9782
Max Feed Size (mm) ≤10 ≤10 ≤10 ≤10
Capacity (t/h) 100 200 175 350
Speed Of Screw (r/min) 21 21 17 17
Motor Power (kw) 11 2*11 15 2*15
Water Consumption (t/h) 10-80 20-160 20-150 40-300
Weight (t) 6.27 11.11 10.18 17.94
